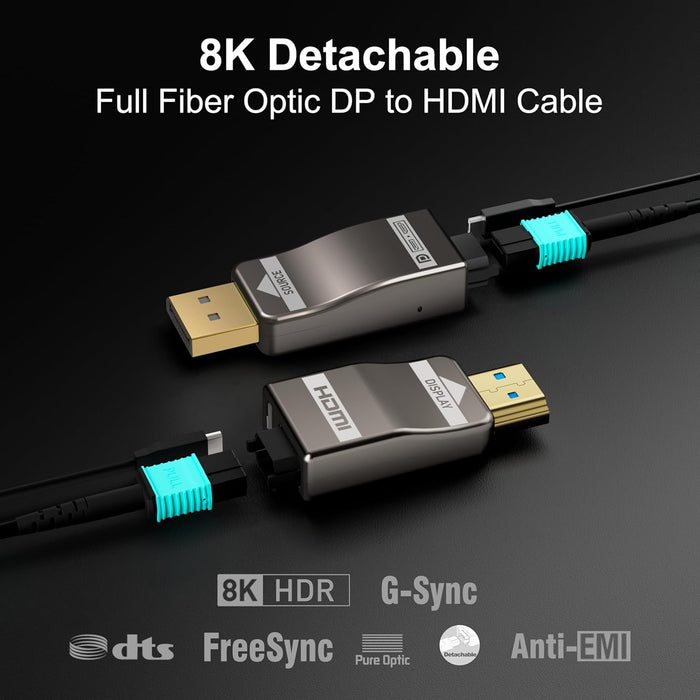

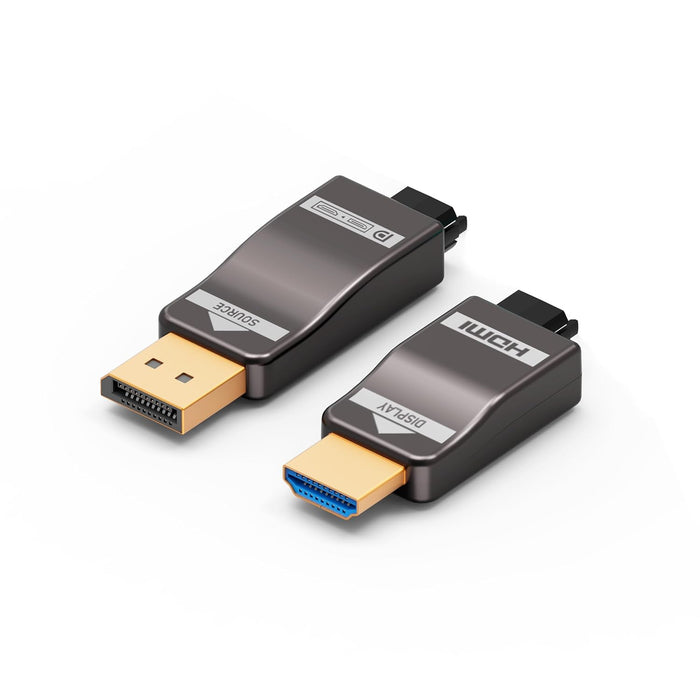

RUIPRO 8K fiber optic DisplayPort to HDMI detachable modules (TX & RX pair) for long-distance optical signal transmission

8K Full Fiber Optic DisplayPort to HDMI Detachable Modules (Tx & Rx Pair)

by RUIPRO
$126.99 - $126.99
$126.99
$126.99 - $126.99
$126.99
SKU PFDH21GEN4A-TXRX

Model Number: PFDH21GEN4A-TXRX

Key Features:

  • Designed for use with RUIPRO customized 7-core MPO fiber optic cables (A polarity, PC end face, female-to-female).
  • Active detachable DisplayPort to HDMI optical transmission module enabling long-distance extension beyond traditional copper cable distance limitations.
  • Modular detachable design supports flexible installation, easier maintenance, and convenient future upgrades for in-wall and long-run applications.
  • Uncompressed fiber-based video transmission with immunity to EMI interference.
  • Supports DisplayPort 1.4 input, backward compatible with DP 1.2.
  • Supports HDMI 2.1 output, backward compatible with HDMI 2.0 / 1.4.
  • Supports up to 4K@144Hz (4:4:4 10-bit) and 8K@60Hz.
  • Supports HDR10+, VRR, ALLM, QFT, QMS, CEC.
  • Supports HDCP 2.3 and DSC 1.2.
  • Supports Dolby Atmos and DTS:X audio formats.
  • This product includes the detachable DP to HDMI connector module only. MPO fiber optic cable is sold separately.

Notes:

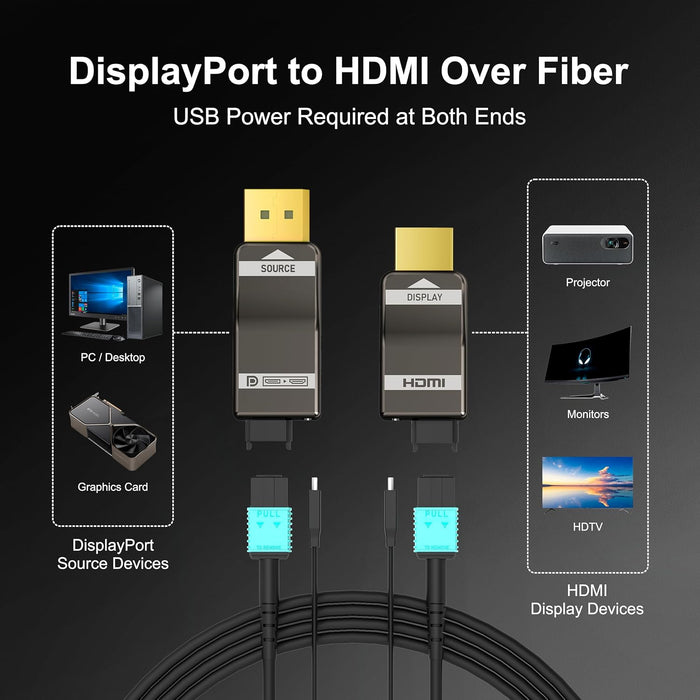

  • Power Supply:  Both ends (TX/RX) require an external 5V USB power supply.
  • The HDMI display module is shared with the HDMI-to-HDMI detachable series. The DP-side module is dedicated for DP-to-HDMI conversion and is not interchangeable with DP-to-DP modules.
